Cacti ist ein Netzwerk-Monitoring-Tool, das speziell für die Verwaltung von Netzwerk-Latencies, Bandbreiten und Paketverlusten entworfen wurde, wobei er eine grafische Benutzeroberfläche bietet, um die erfassten Daten zu visualisieren. Es kann in verschiedenen Umgebungen eingesetzt werden, um die Netzwerkperformance zu überwachen und Probleme zu diagnostizieren

>sudo apt-get install snmp
>sudo apt-get install php-snmp
>sudo apt-get install rrdtool
>sudo apt-get install librrds-perl
>sudo apt-get install php-ldap
>sudo apt-get install php-gmp

>nano /etc/php/7.4/apache2/php.ini
----------------anpassen start
memory_limit = 512M
max_execution_time = 60
date.timezone = Europe/Zurich
----------------anpassen ende
>nano /etc/php/7.4/cli/php.ini
----------------anpassen start
memory_limit = 512M
max_execution_time = 60
date.timezone = Europe/Zurich
----------------anpassen ende
>sudo systemctl restart apache2

>sudo nano /etc/mysql/mariadb.conf.d/50-server.cnf
-------------------------anpassen und einfügen
collation-server = utf8mb4_unicode_ci
max_heap_table_size = 128M
tmp_table_size = 64M
join_buffer_size = 64M
innodb_file_format = Barracuda
innodb_large_prefix = 1
innodb_buffer_pool_size = 512M
innodb_flush_log_at_timeout = 3
innodb_read_io_threads = 32
innodb_write_io_threads = 16
innodb_io_capacity = 5000
innodb_io_capacity_max = 10000
-------------------------anpassen und einfügen ende
>sudo systemctl restart mariadb

mysql
create database cactidb;

GRANT ALL ON cactidb.* TO cactiuser@localhost IDENTIFIED BY 'password'
flush privileges;
exit;

>mysql mysql < /usr/share/mysql/mysql_test_data_timezone.sql

mysql
GRANT SELECT ON mysql.time_zone_name TO cactiuser@localhost;
flush privileges;
exit;

https://www.cacti.net/download_cacti.php

>wget https://www.cacti.net/downloads/cacti-1.2.16.tar.gz
>tar -zxvf cacti-1.2.16.tar.gz
>mv cacti-1.2.16 /var/www/html/cacti

>mysql cactidb < /var/www/html/cacti/cacti.sql

>nano /var/www/html/cacti/include/config.php
----------------------anpassen
$database_type = 'mysql';
$database_default = 'cactidb';
$database_hostname = 'localhost';
$database_username = 'cactiuser';
$database_password = 'password';
$database_port = '3306';
----------------------anpassen ende

>touch /var/www/html/cacti/log/cacti.log
>chown -R www-data:www-data /var/www/html/cacti/
>chmod -R 775 /var/www/html/cacti/

>sudo nano /etc/cron.d/cacti
*/5 * * * * www-data php /var/www/html/cacti/poller.php > /dev/null 2>&1

Directive bearbeiten in webmin
-------------------------------------------------------------
DocumentRoot "/var/www/html/cacti"
Alias /cacti /var/www/html/cacti
<Directory /var/www/html/cacti>
Options +FollowSymLinks
AllowOverride None
<IfVersion >= 2.3>
Require all granted
</IfVersion>
<IfVersion < 2.3>
Order Allow,Deny
Allow from all
</IfVersion>
AddType application/x-httpd-php .php
<IfModule mod_php.c>
php_flag magic_quotes_gpc Off
php_flag short_open_tag On
php_flag register_globals Off
php_flag register_argc_argv On
php_flag track_vars On
###### # this setting is necessary for some locales
php_value mbstring.func_overload 0
php_value include_path .
</IfModule>
DirectoryIndex index.php
</Directory>
SSLEngine on
SSLCertificateFile /etc/apache2/ssl/sslcert-raspiboard2048.crt
SSLCertificateKeyFile /etc/apache2/ssl/sslcert-raspiboard2048.key
ErrorLog /var/log/apache2/error.log
CustomLog /var/log/apache2/access.log "combined"
LogLevel emerg
-------------------------------------------------------------
>systemctl restart apache2

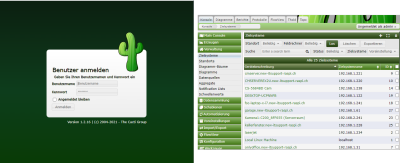

• http://your-server-ip/cacti

>sudo snap install net-snmp

Cacti installieren PDF
